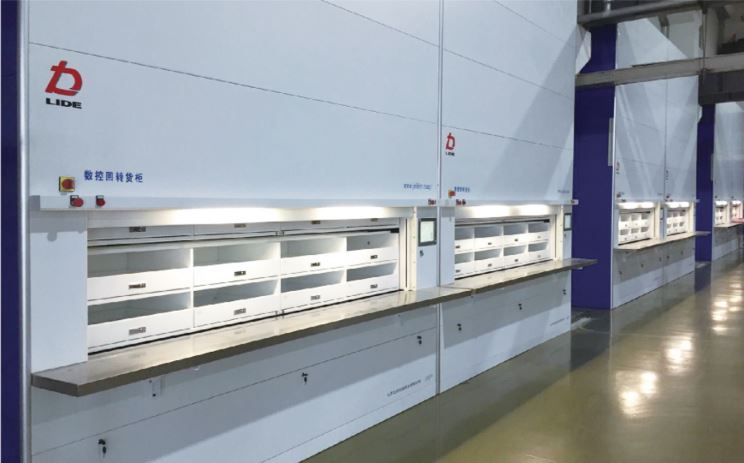

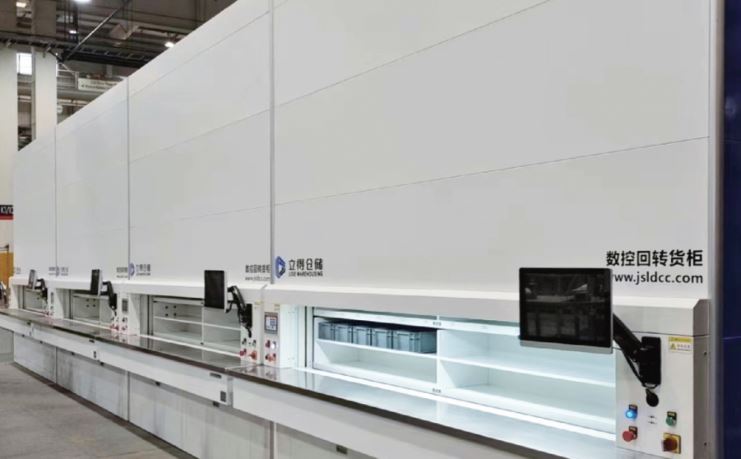

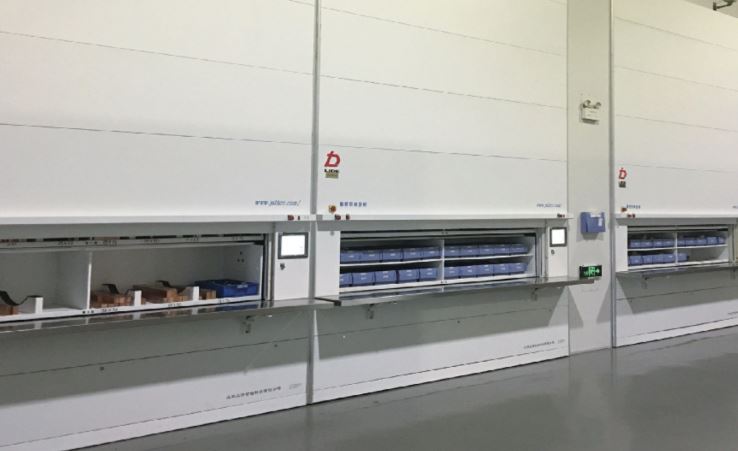

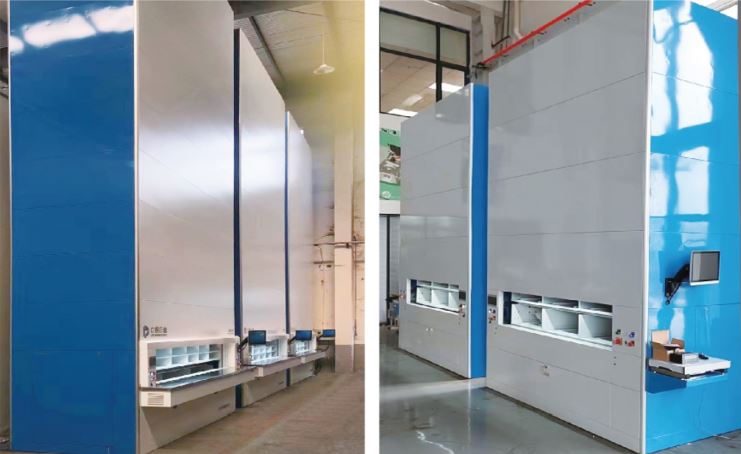

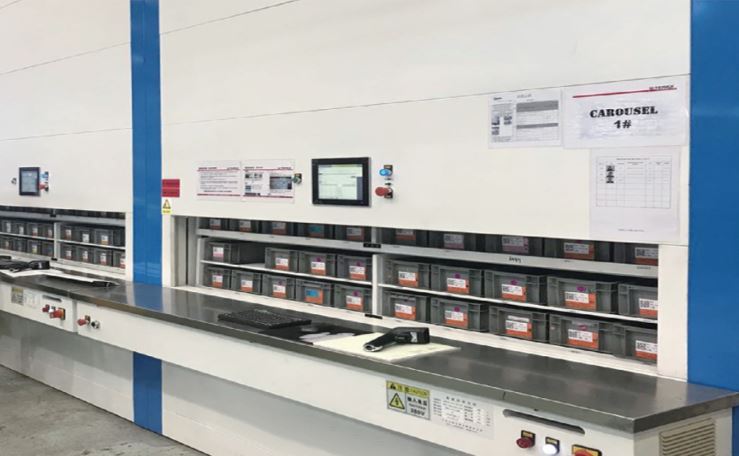

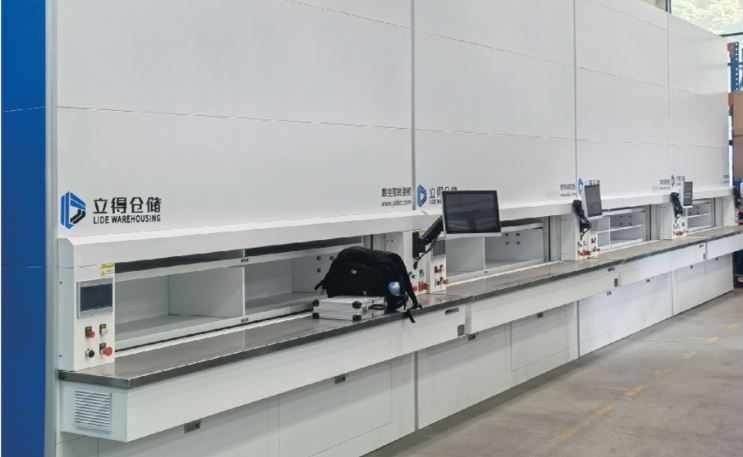

Vertical Storage Carousel

Vertical Storage Carousel - Modular Structure & High Frequency Access

Key Features & Benefits

Goods-to-Person Access for faster and more efficient retrieval
Intelligent path optimization minimizes wait times and enhances workflow
Maximizes storage capacity, saving 60% to 85% of floor space
99% accuracy in inventory handling, reducing errors
Secure and organized storage, ensuring easy tracking and access
Ideal for frequently accessed goods, improving operational efficiency

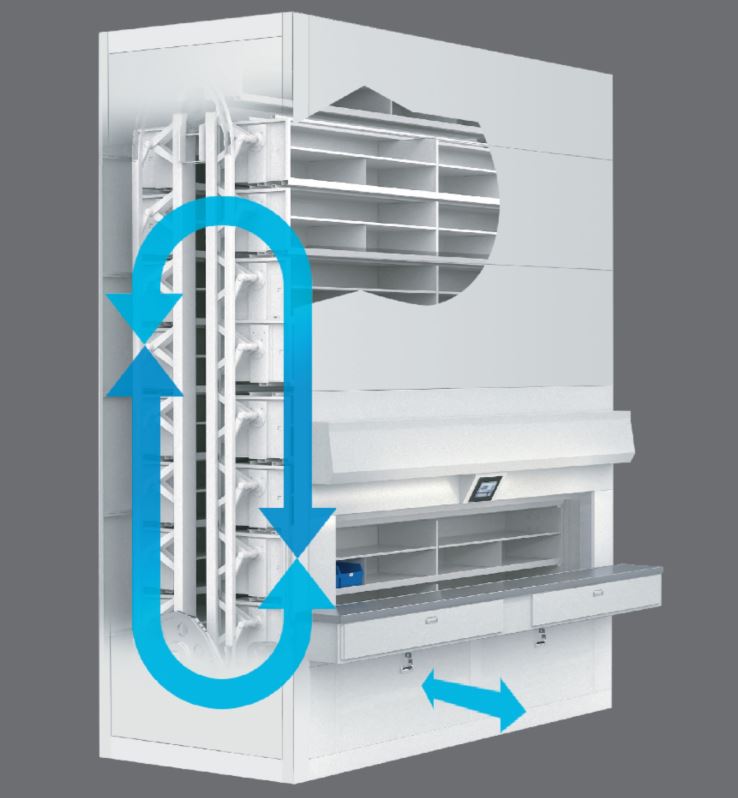

Taking mechanical transmission as the main principle, taking the box bucket as the storage unit, and addressing the recognition unit, intelligently screening the best path.Send stored items to the operator as quickly as possible, especially for frequently accessed goods.
Greatly increase the effective storage capacity, saving (60% to 85%) floor space. “Goods to person” access method. The accuracy of handling inventory products is as high as 99%.

Why Choose a Vertical Storage Carousel?

Intelligent Storage
- Accommodates up to 1,000 different items in a compact footprint

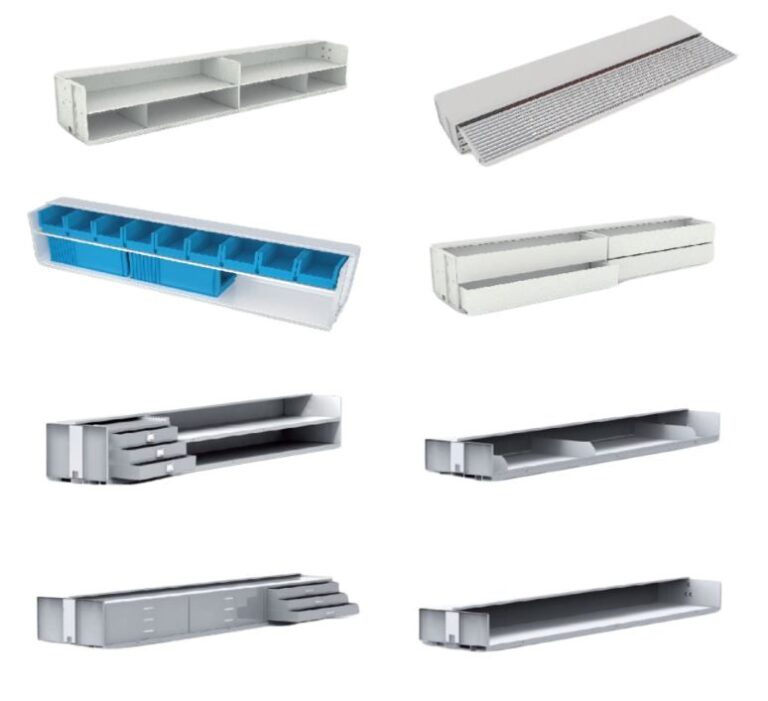

- Adjustable container bins allow flexible storage for various item sizes
- Rotary shelving system optimizes storage and retrieval efficiency
Enhanced Security

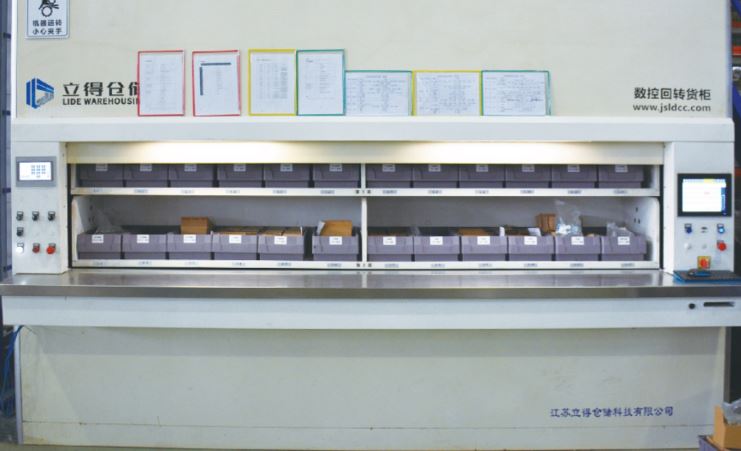

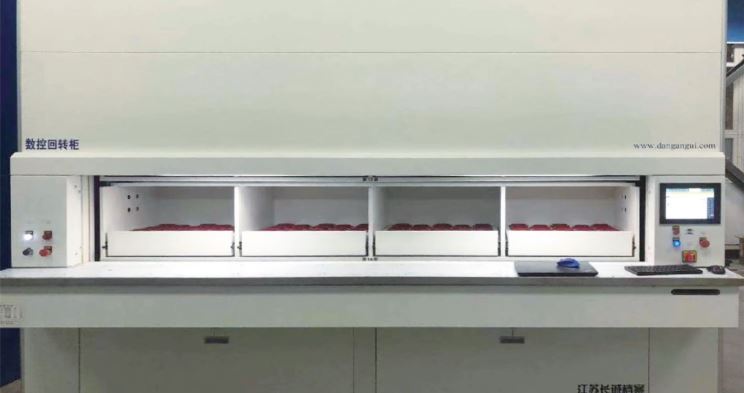

- Enclosed picking table ensures safe and controlled access to stored items
- Stable suspension design prevents damage and ensures secure handling
High Precision
- Computer-controlled operation delivers items with minimal retrieval time
- Automated positioning system ensures accurate and efficient order fulfillment
- Ideal for high-frequency picking in environments requiring fast access

No matter whether it is a small, medium or large enterprise, industrial or commercial, the equipment is suitable for almost every need, combining first-class performance, optimum ease of use and aesthetic appearance.

Scope of application

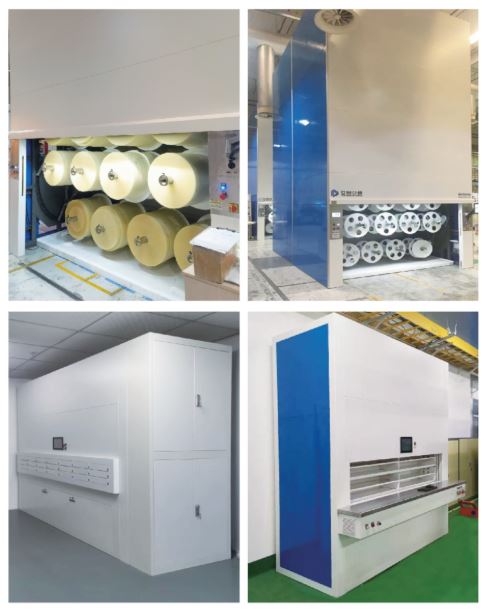

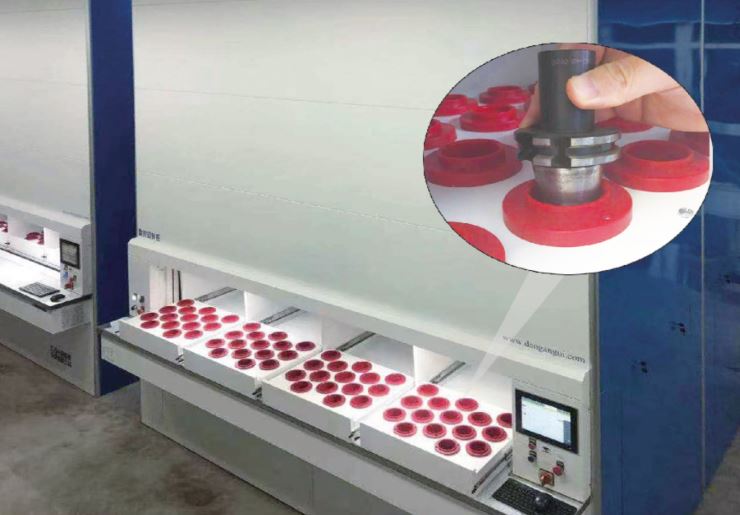

Mainly used for storing tools, knives, industrial spare parts, electronic components, cigarette machine spare parts, tobacco raw materials, medical drugs, appliances, as well as important documents, materials, CDS, magnetic media, etc. Widely used in aerospace, tobacco, machinery, petrochemical, medicine, electronics, archives, docks, railways, automobiles and other

Advantage

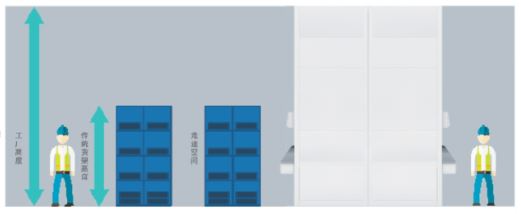

Optimal use of floor space, no upper limit
“Goods sourcing” saves and shortens time
Ergonomic entry and exit height
Items that are better than dust and light rotection/confidential items
On-demand configuration, flexible storage
High-performance controls can be flexibly adapted to custom applications
Design sense, customizable coating
Safety first, there is no risk of climbing ladders

Model	Bucket Number	Hopper Net Size (Length)	Hopper Net Size (Depth)	Hopper Net Size (Height)	Cabinet External Dimensions (Length)	Cabinet External Dimensions (Width)	Cabinet External Dimensions (Work Bench)	Cabinet External Dimensions (Height)	Single Bucket Load-bearing (Kg)
LDH100-2200*1000-8C	8	1750	320	340	2200	1000	340	2180	100
LDH100-2200*1000-10C	10	1750	320	340	2200	1000	340	2560	100
LDH100-2200*1000-12C	12	1750	320	340	2200	1000	340	2940	100
LDH100-2200*1000-14C	14	1750	320	340	2200	1000	340	3320	100
LDH250-3200*1450-8C	8	2543	450	340	3200	1450	300	2240	250
LDH250-3200*1450-10C	10	2543	450	340	3200	1450	300	2620	250
LDH250-3200*1450-12C	12	2543	450	340	3200	1450	300	3000	250
LDH250-3200*1450-14C	14	2543	450	340	3200	1450	300	3380	250
LDH250-3200*1450-16C	16	2543	450	340	3200	1450	300	3760	250
LDH350-3200*1520-10C	10	2520	500	340	3200	1520	300	2740	350
LDH350-3200*1520-12C	12	2520	500	340	3200	1520	300	3120	350
LDH350-3200*1520-14C	14	2520	500	340	3200	1520	300	3500	350
LDH350-3200*1520-16C	16	2520	500	340	3200	1520	300	3880	350
LDH350-3200*1520-18C	18	2520	500	340	3200	1520	300	4300	350
LDH500-3200*1520-12C	12	2520	500	340	3200	1520	300	3500	500
LDH500-3200*1520-14C	14	2520	500	340	3200	1520	300	3880	500
LDH500-3200*1520-16C	16	2520	500	340	3200	1520	300	4260	500
LDH500-3200*1520-18C	18	2520	500	340	3200	1520	300	4640	500
LDH500-3200*1520-20C	20	2520	500	340	3200	1520	300	4970	500
LDH500-3200*1520-22C	22	2520	500	340	3200	1520	300	5350	500
LDH500-3200*1520-24C	24	2520	500	340	3200	1520	300	5740	500
LDH500-3200*1520-26C	26	2520	500	340	3200	1520	300	6120	500
LDH500-3200*1520-28C	28	2520	500	340	3200	1520	300	6500	500
LDH500-3200*1520-30C	30	2520	500	340	3200	1520	300	6880	500
LDH500-3200*1520-32C	32	2520	500	340	3200	1520	300	7260	500
LDH500-3200*1520-34C	34	2520	500	340	3200	1520	300	7640	500
LDH500-3200*1520-36C	36	2520	500	340	3200	1520	300	8020	500
LDH500-3200*1520-38C	38	2520	500	340	3200	1520	300	8400	500
